How Is a Vacuum Sandblasting Machine Manufactured? (A Professional Guide in 6 Steps)

Learn about the vacuum sandblasting machine production process step by step. The right system for lower costs, high efficiency, and a controlled finish.

The Engineering Process in Industrial Surface Preparation

Surface preparation is a critical step in industrial production that is often overlooked but directly determines the final result. Vacuum sandblasting machines stand out as one of the most controlled solutions, particularly for precision parts, applications in enclosed spaces, and processes requiring a dust-free environment.

So, how is a vacuum sandblasting machine manufactured?
This process is not merely a matter of mechanical assembly. Rather, it is an engineering process in which parameters such as airflow, abrasive management, and surface performance are optimized in tandem.

In this article, we examine the production stages of the 210L, 310L, and 510L vacuum sandblasting cabinets in technical detail.

---

What Is Vacuum Sandblasting?

Vacuum sandblasting is a surface preparation method in which abrasive material is applied to a surface and simultaneously sucked back up and reclaimed.

Thanks to this system:

• Dust formation is minimized
• The abrasive is reused
• Operator safety is improved
• The process is brought under control

For this reason, vacuum systems are preferred, particularly in enclosed spaces, for handling delicate parts, and in applications that require high quality.

---

1. Design and Engineering Process

It all starts with the right design.

The design process for vacuum sandblasting machines is based on the following parameters:

• Cargo capacity (210 L / 310 L / 510 L)
• Airflow balance
• Vacuum capacity
• Abrasive circulation system
• Operator ergonomics

In a poorly designed system:

• The vacuum is insufficient
• Abrasive loss increases
• Surface quality decreases

Proper engineering, on the other hand, makes the process measurable and repeatable.

---

2. Body Manufacturing and Structural Strength

Vacuum sandblasting cabinets are systems that are constantly exposed to abrasives. For this reason, the design of the cabinet is of critical importance.

During the manufacturing process:

• High-strength steel is used
• Protective internal coatings are applied to prevent wear
• Sealing details are meticulously crafted

Thanks to this structure:

✔ Long service life
✔ Low maintenance requirements
✔ Stable operating performance

is obtained.

---

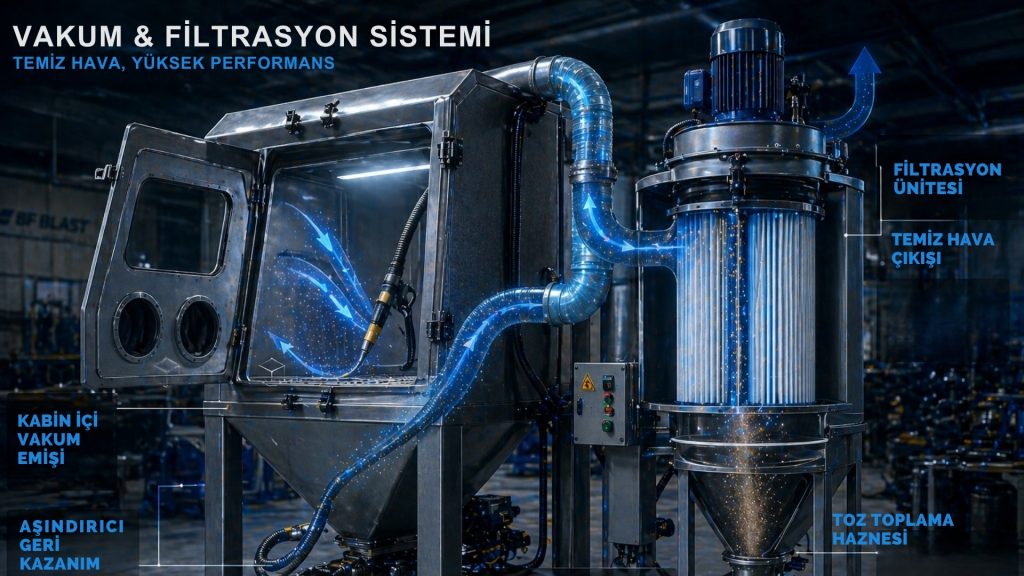

3. Vacuum and Filtration Systems

The most critical component of vacuum sandblasting machines is the vacuum and filtration system.

The functions of this system are:

• Recovering the abrasive
• Removing dust from the environment
• Keep your field of view clear
• Ensuring process stability

An ineffective filtration system:

• It pollutes the environment
• It damages machine components
• It reduces surface quality

An optimized system, on the other hand, is:

✔ Clean working environment
✔ Lower consumption
✔ Higher process efficiency

provides.

---

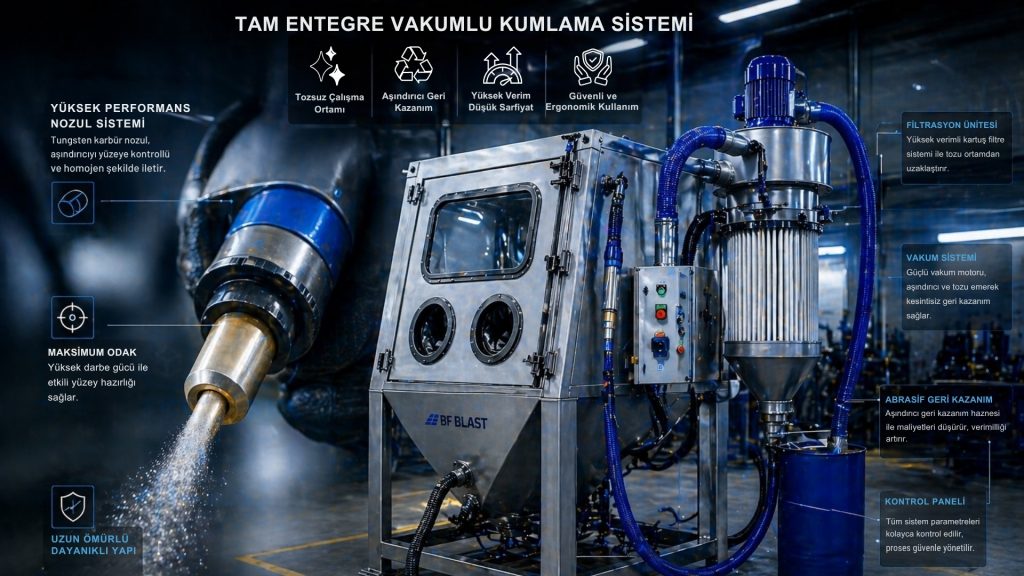

4. Nozzle and Sandblasting Gun Integration

One of the most critical factors determining sandblasting performance is the nozzle system.

At this stage:

• The correct nozzle diameter is selected
• Wear-resistant materials are used (e.g., tungsten carbide)
• The abrasive flow is optimized

Incorrect nozzle selection:

• Energy loss
• Poor cleaning performance
• High operating costs

Why does it happen?

Proper integration, on the other hand, is:

✔ Uniform surface profile
✔ Controlled abrasion
✔ Maximum efficiency

provides.

---

5. System Integration and Process Alignment

Vacuum sandblasting machines are not made up of individual components.
Their true performance comes from the way these components work together.

At this stage:

• Air pressure is equalized
• Vacuum – abrasive flow is synchronized
• Operational ergonomics are optimized

Objective:
👉 To set up a stable, carrier-independent system.

---

6. Testing, Calibration, and Performance Verification

The final stage of production is the testing and calibration process.

At this stage:

• Pressure values are measured
• The flow of the abrasive is controlled
• Surface roughness (Ra / Rz) is tested
• System performance is verified

An untested machine:

• It causes problems on the field
• It lowers the quality
• It increases costs

A calibrated system, on the other hand, is:

✔ Consistent quality
✔ Measurable performance
✔ Reliable production

means.

---

Advantages of a Vacuum Sandblasting Machine

A vacuum sandblasting system manufactured with proper engineering:

• Provides a dust-free and safe work environment
• Reduces costs through abrasive recovery
• Creates controlled roughness on delicate surfaces
• Ensures maximum adhesion before coating

Thanks to these features;
Vacuum blasting systems are not just a piece of equipment,
It is a process optimization tool.

---

Conclusion: Sandblasting Is Not Just a Piece of Equipment, but an Engineering Process

The production of vacuum sandblasting machines is much more than just assembling parts—
.

This process:

• Control of airflow
• Abrasive Management
• Surface Engineering

It is a combination of disciplines such as…

A well-designed system:

👉 Lower cost
👉 Higher quality
👉 Longer part life

provides.

---

Let’s Determine the Right Vacuum Sandblasting Solution for Your Project

Every production line is different.
Every surface has different requirements.
And that’s why the right vacuum sandblasting system isn’t a standard product—it’s the result of engineering analysis.

Incorrect system selection:

• Unnecessary investment costs
• Low process efficiency
• High consumption of consumables
• Coating issues and quality losses

means.

At BF BLAST, we do more than just supply machines.
👉 We analyze and optimize your entire sandblasting process and deliver measurable results.

In our customized project for you:

✔ Part type and geometry analysis
✔ Determining target surface roughness (Ra / Rz)
✔ Selection of appropriate abrasive and nozzle
✔ Optimization of vacuum and filtration capacity
✔ Total cost of ownership (TCO) calculation

As a result:

➡ Lower operating costs
➡ Higher production efficiency
➡ Longer coating life
➡ Standardized surface quality

you’ll get.

---

📞 Contact Us Now – Let’s Optimize Your Process Together

Don’t put your investment in a vacuum sandblasting machine at risk.
Let’s design the right system with the right parameters.

📞 0312 395 25 50
🌐 www.bfblast.com

👉 Send us your project, and we’ll provide you with a customized technical analysis and our proposed solution.
